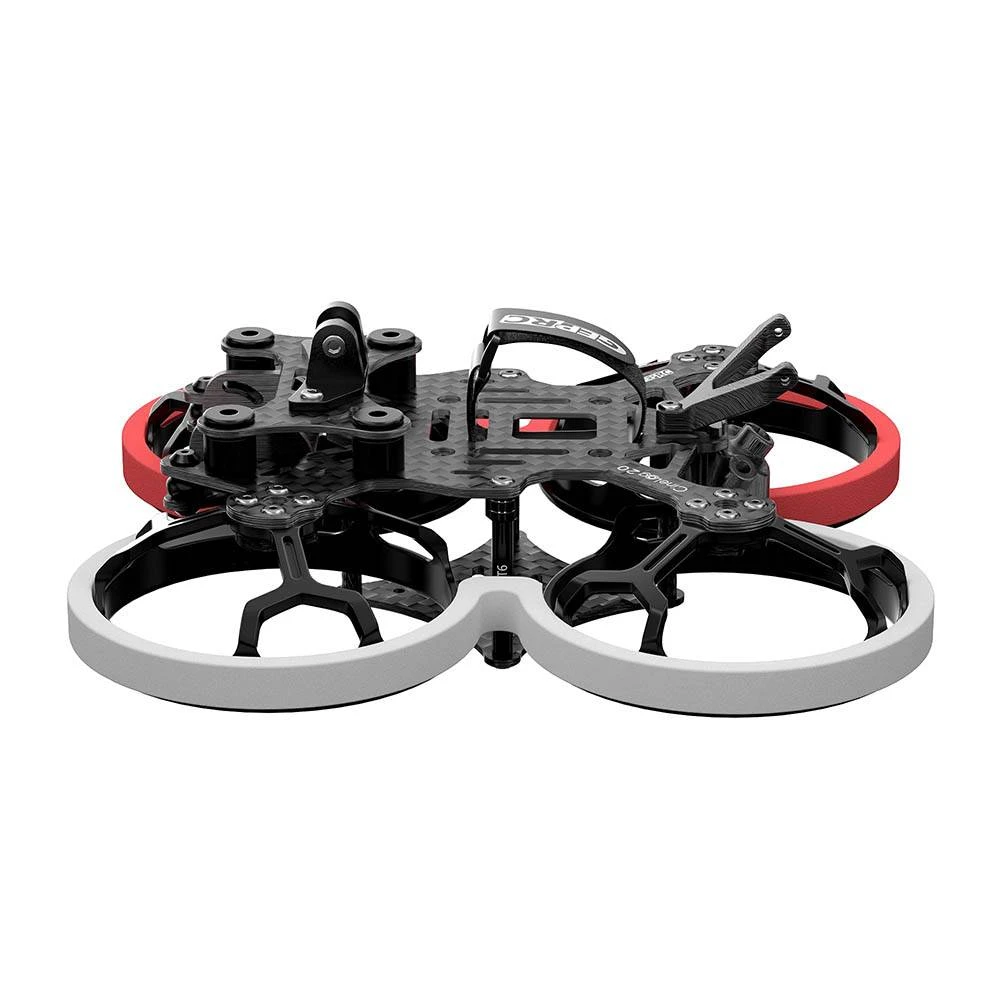

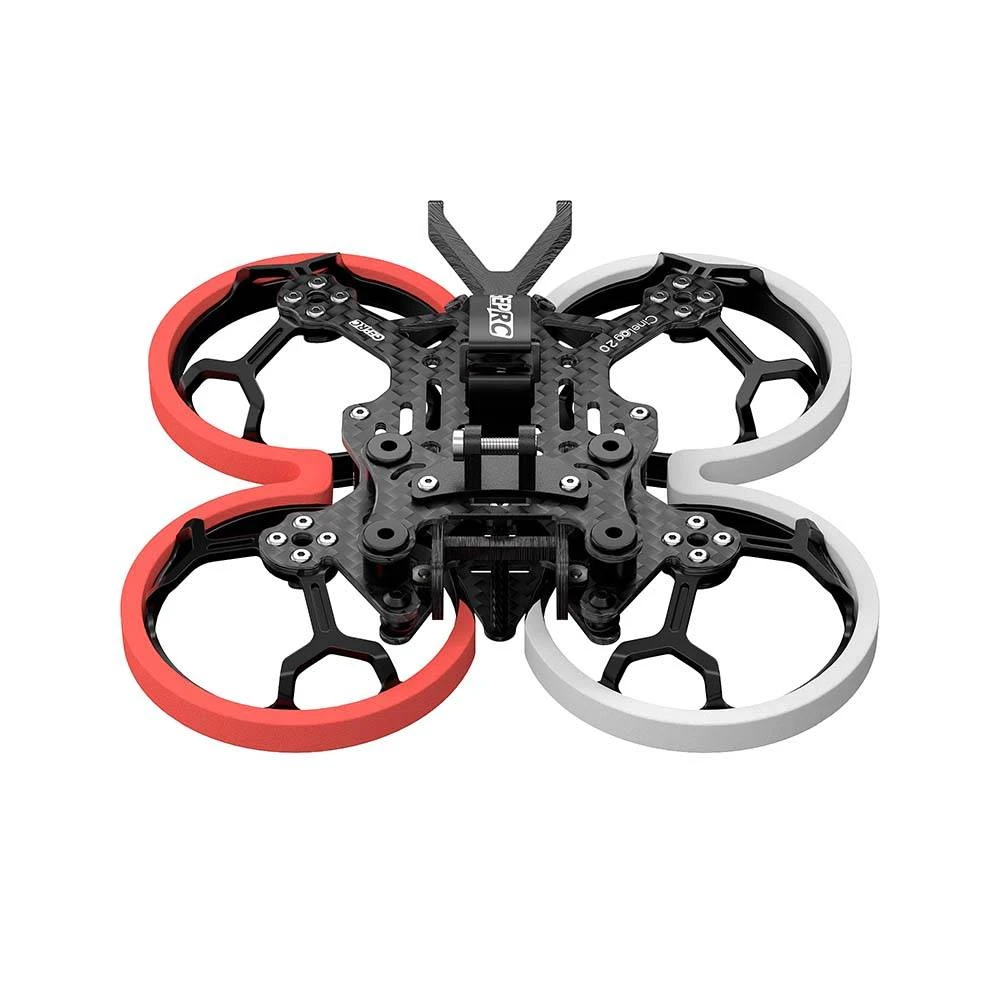

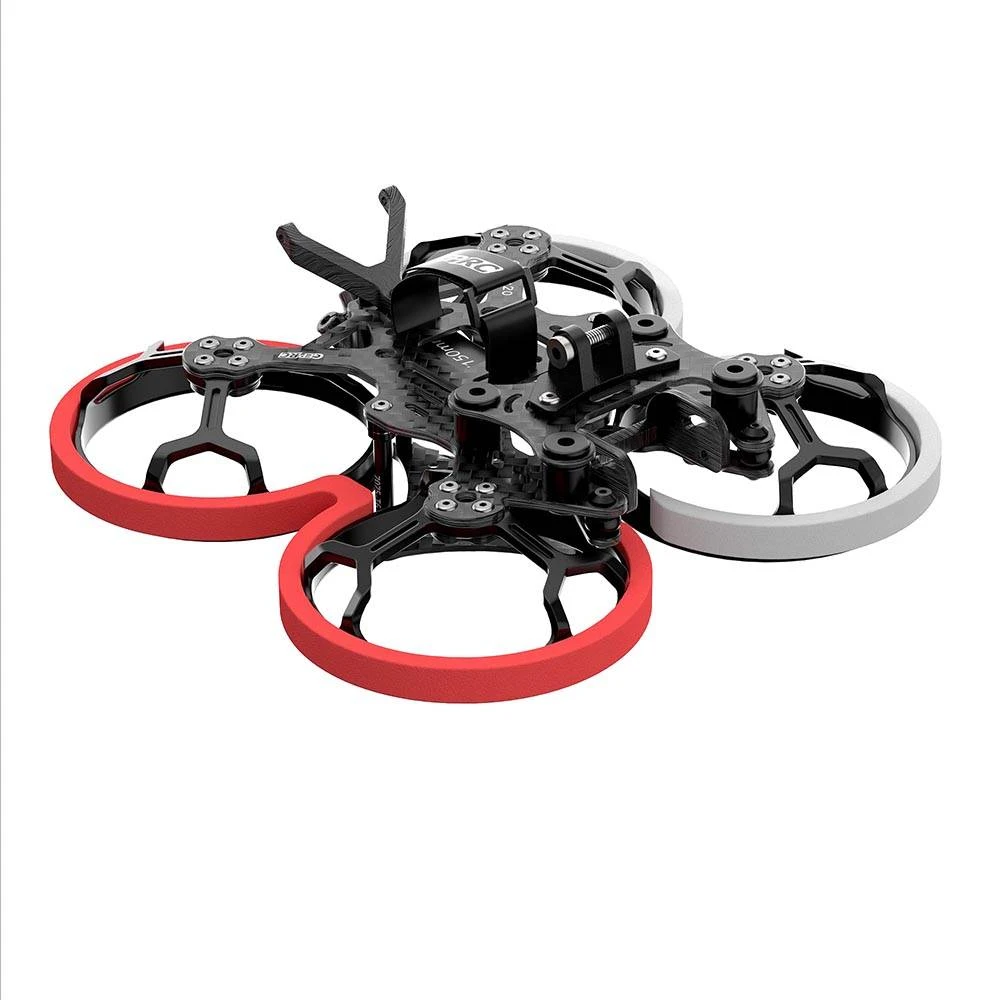

The new GEPRC Cinelog 20 2″ Frame Kit can be shuttled in a narrow space, and can be adapted to O3 VTX, and can also shoot shocking effects in a narrow space. The resigned camera gimbal can easily eliminate high-frequency vibration and jello issues. Soft connection damping design of the camera gimbal and can also be mounted with a naked GoPro base, which supports the installation of Naked GoPro 8/910/11, Insta360 Go2 and DJI Action2 cameras. The flight controller mounting hole spacing is 25.5mm*25.5mm, which is compatible with various VTX holes on the market with 20mm*20mm/25.5mm*25.5mm. The 9mm * 9mm motor mounting hole is used to install larger 12-13 series motors, and the compact body makes the flight more confident.

• Supports the installation of Naked GoPro 8/910/11, Insta360 Go2 and DJI Action2 cameras
• Camera gimbal can easily eliminate high-frequency vibration and jello issues
• Design the outer EVA damping ring to effectively reduce the impact force
• Flight controller mounting hole spacing is 25.5mm*25.5mm
• Combining aesthetics and engineering for compact design
• Soft connection damping design of the camera gimbal
• Shoots shocking effects in a narrow space
• Can be shuttled in a narrow space
• Can be adapted to O3 VTX

• Flight controller: GEP-F4-35A AIO (mounting holes: 25.5mm×25.5mm)
• VTX mounting holes: 20mm x 20mm /25.5mm x 25.5mm
• Motor: 1303.5 (mounting holes: 9mm×9mm)
• Suitable propeller size: 2 inch propeller
• FC mounting holes: 25.5mm x 25.5mm
• Camera gimbal triangle plate : 1.5mm
• Motor mounting holes: 9mm x9mm
• Recomended Battery: 4S 660mAh
• Camera gimbal plate: 2.0mm
• FPV camera spacing: 20mm
• Motor plate gasket: 2.0mm
• Bottom plate: 1.5mm
• Wheelbase: 100mm
• Main plate: 2.5mm
• Propeller: 2 inch
• Weight: 53.4g
• ESC: 35A

PLATES

• 1 x Camera gimbal triangle plate: 1.5mm
• 1 x Camera gimbal plate: 2.0mm
• 1 x Motor plate gasket: 2.0mm
• 1 x Bottom plate: 1.5mm

HARDWARE

• 1 x Single-ended bright-edge aluminum column M2*3.5*28
• 1 x Single-ended bright-edge aluminum column M2*3.5*25
• 4 x M2*1.9-OD4.9 self-clinching nut-brass color M2
• 4 x Camera gimbal shock absorbing rubber ring
• 5 x Camera gimbal vibration dampening rubber
• 1 x 7075 Aluminum Column M2*3.5*28
• 1 x 7075 Aluminum Column M2*3.5*25
• 2 x Round head screw with pad M2*8
• 6 x Round head screw M2*4 X6
• 10 x Round head screw M2*12
• 4 x Round head screw M2*16
• 18 x Round head screw M2*7
• 18 x Round head screw M2*8
• 4 x Round head screw M2*5
• 4 x Half-round head M1.6*8
• 4 x Nylon column M2*5mm
• 10 x Self-clinching nut M2
• 4 x BEC silicone gasket
• 10 x Nylon nut M2

3D PRINTED PARTS

• 1 x VTX Antenna mount(small hole)
• 1 x VTX Antenna mount (big hole)
• 1 x Camera mount (2 holes)
• 1 x Camera mount (1 hole)
• 1 x TBS Antenna mount
• 1 x Receiver mount
• 1 x Receiver mount

INJECTION MOLDED PARTS

• 4 x Propeller guard

ACCESSORIES

• 1 x 4S Naked GoPro power cable (with balanced terminal head)
• 2 x Receiver antenna tubes 100mm
• 1 x L-shaped screwdriver 1.5MM
• 2 x 3M double-sided tape
• 1 x Naked GoPro 8 base
• 2 x Battery anti-slip pad
• 2 x Battery tie M15*150
• 4 x EVA damping ring
• 2 x Damping pad
• 1 x Keychain
