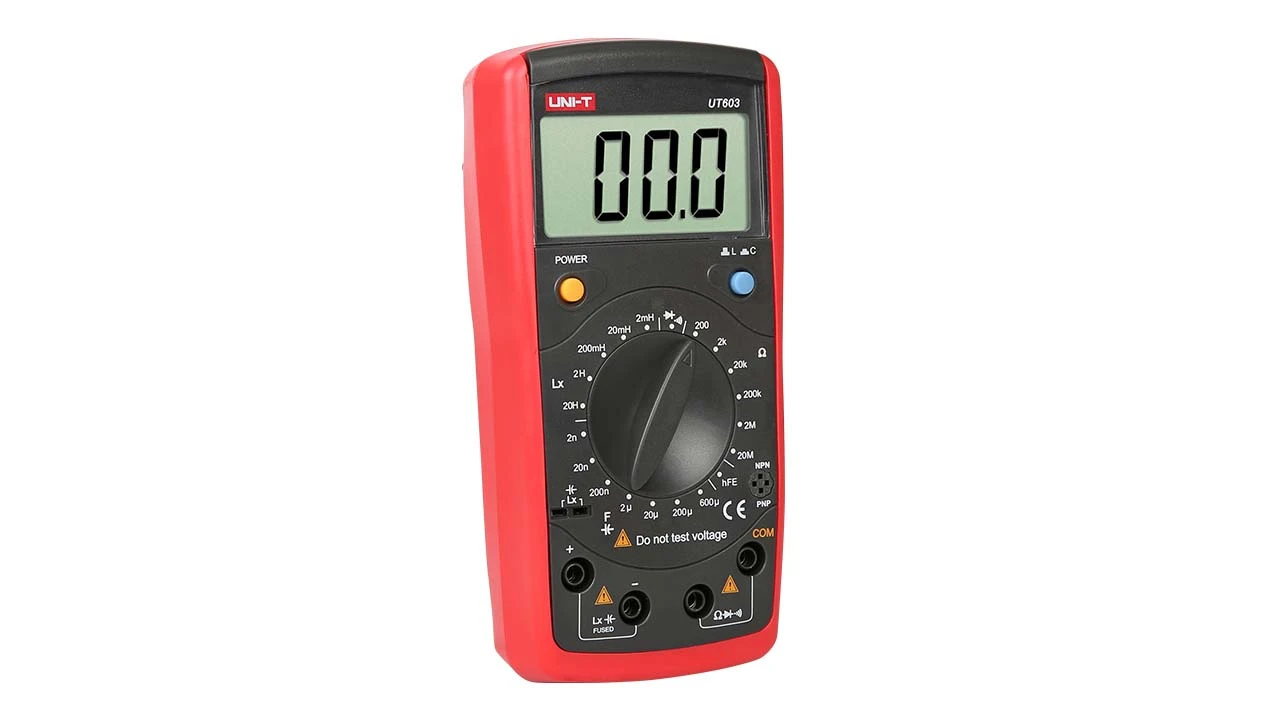

UNIT UT603 LCR Meter
The UT603 Digital LCR Meter is a high-precision measuring device designed for testing resistors, capacitors, inductors, and transistors. Ideal for electronics labs, production lines, maintenance tasks, and educational institutions, it offers reliable component testing with user-friendly features.
Key Feature
- Component Testing: Measures resistance, capacitance, inductance, and transistor parameters.
- Diode & Continuity Check: Includes diode testing and buzzer-based continuity detection.
- Transistor Testing: Comes with a built-in transistor testing adapter.
- Manual Range Selection: Allows manual control over measurement range.
- Refresh Rate: 2 to 3 times per second for quick updates.
- Battery Status: Low battery indication to avoid measurement interruptions.
Technical Specifications:
Parameter | Specification |
|---|
Display Count | 1999 |
Measurement Functions | Resistance, Capacitance, Inductance, Transistor |
Transistor Testing | Yes (with Built-in Adapter) |
Diode Testing | Yes |
Continuity Buzzer | Yes |
Manual Range Selection | Yes |
Refresh Rate | 2–3 readings per second |
Low Battery Indicator | Yes |
Power Supply | 9V Battery (6F22) |
LCD Display Size | 61mm × 32mm |
Product Color | Red & Grey |
Net Weight | 312g |
Product Dimensions | 172mm × 83mm × 38mm |
Standard Accessories | Battery, Test Clip, Holster |
Applications
- Circuit testing in labs
- QC in electronics production
- Component fault diagnosis
- Educational use
- Portable field testing
