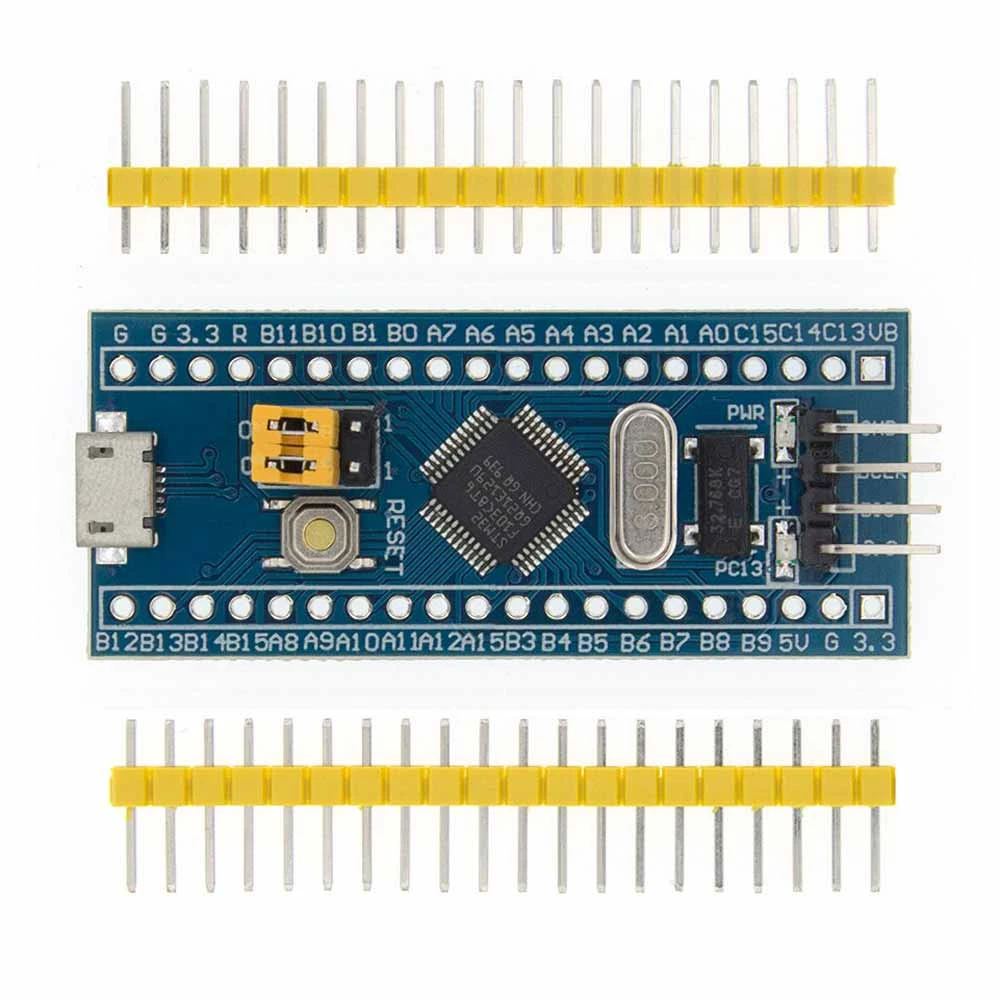

STM32F103C8T6 Blue Pill Development Board

(0)

67 In Stock

৳425

Quantity

Total price: ৳425

Tax: incl.

Details description
This developement board is based on STM32F103C8T6, a 32-bit microcontroller based on ARM cortex-M3 architecture. By flashing the correct bootloader, it can be used as an Arduino board. Resources can be found here. Password: techshopbd For Arduino Guide, check document section Specification of STM32F103C8T6 Blue Pill Development Board 1)Chip details: STM32F103C8T6 Kernel: Cortex-M3; Operating frequency: 72MHz; Storage resources: 64K Byte Flash, 20KByte SRAM; Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports, Analog-to-digital conversion: ADC (12-bit / 16-channel) PWM: 16-bit/15 channel. Timers: 3 general timers and 1 advanced timer Debug Download: Support JTAG / SWD debug interface to download, support for IAP. 2) internal RTC clock. 3)On board 3.3V voltage regulator. 4)Boot0 and boot1 selection jumpers.

Details description

This developement board is based on STM32F103C8T6, a 32-bit microcontroller based on ARM cortex-M3 architecture. By flashing the correct bootloader, it can be used as an Arduino board.

Resources can be found here. Password: techshopbd

For Arduino Guide, check document section

Specification of STM32F103C8T6 Blue Pill Development Board

1)Chip details:

STM32F103C8T6

Kernel: Cortex-M3;

Operating frequency: 72MHz;

Storage resources: 64K Byte Flash, 20KByte SRAM;

Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports,

Analog-to-digital conversion: ADC (12-bit / 16-channel)

PWM: 16-bit/15 channel.

Timers: 3 general timers and 1 advanced timer

Debug Download: Support JTAG / SWD debug interface to download, support for IAP.

2) internal RTC clock.

3)On board 3.3V voltage regulator.

4)Boot0 and boot1 selection jumpers.
