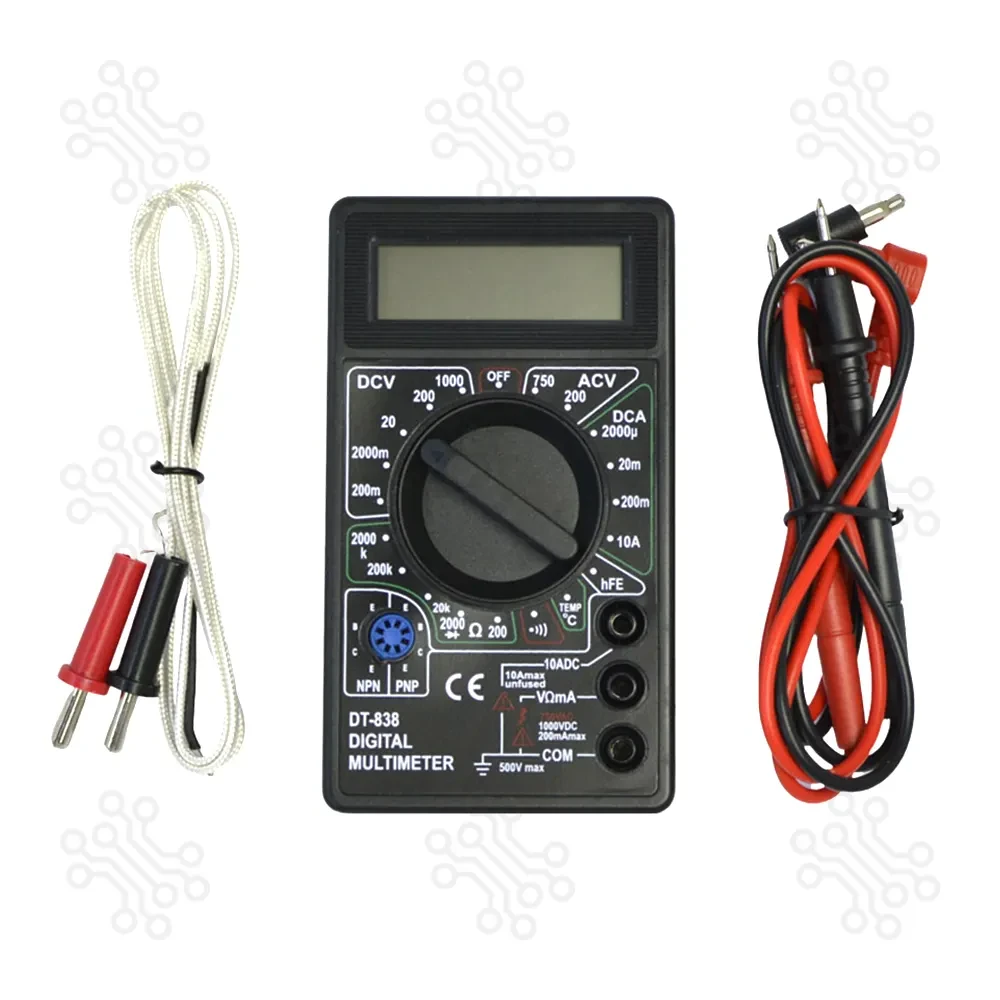

Soundtech Multimeter DT838
The Soundtech Multimeter DT838 is a reliable, compact, and budget-friendly digital multimeter designed for electronics enthusiasts, students, and professionals. It provides accurate measurements of voltage, current, resistance, and other essential electrical parameters, making it ideal for troubleshooting and electronic circuit testing.
Key Features
- The device includes a diode and transistor hFE testing function.
- A continuity buzzer is present for resistance below 50Ω.
- The device is powered by a 9V battery, which is not included.
- A low battery indicator is available for user convenience.
- The multimeter is designed to be portable and lightweight for easy use
Technical Specifications
| Feature | Specification |
|---|
Display | 3½-digit LCD (1999 counts) |
DC Voltage Range | 200mV to 1000V |
AC Voltage Range | 200V, 600V |
DC Current Range | 200µA to 10A |
Resistance Range | 200Ω to 2MΩ. |
Diode Testing | Yes |
Transistor Testing | Hfe measurement |
Continuity Buzzer | Yes (below 50Ω) |
Temperature Range | -20°C to 1370°C |
Power Supply | 9V Battery (not included) |
Dimension | 2.85 X 5.0 X 0.9 |
Applications
- Electronics Troubleshooting: Ideal for circuit board diagnostics and repairs.
- Household Electrical Testing: Suitable for checking wiring, fuses, and appliances.
- Automotive Testing: Useful for diagnosing vehicle electrical issues.
- Educational Purposes: Perfect for students and hobbyists learning electronics.
- DIY and Home Use: Handy for general-purpose electrical measurements.
Packaging Details
- 1 x Soundtech Multimeter DT838

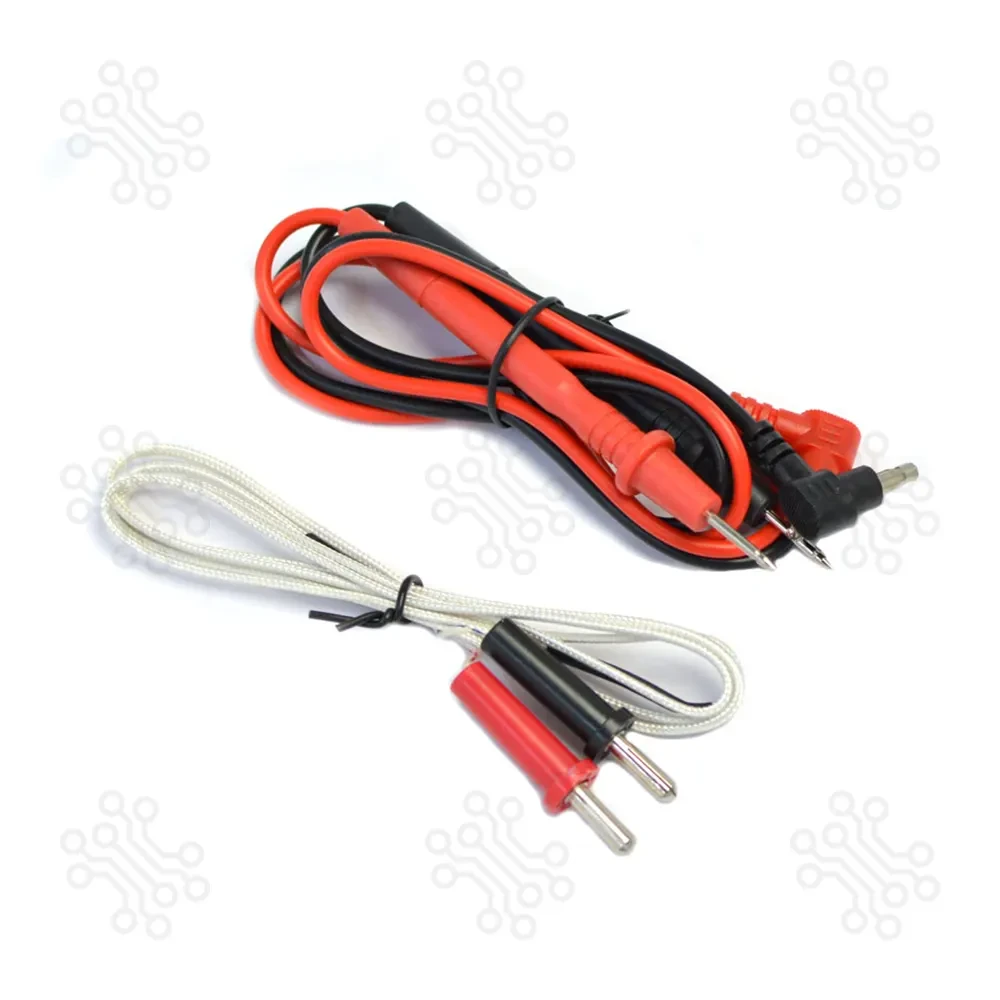

- 1 x Pair of Test Leads

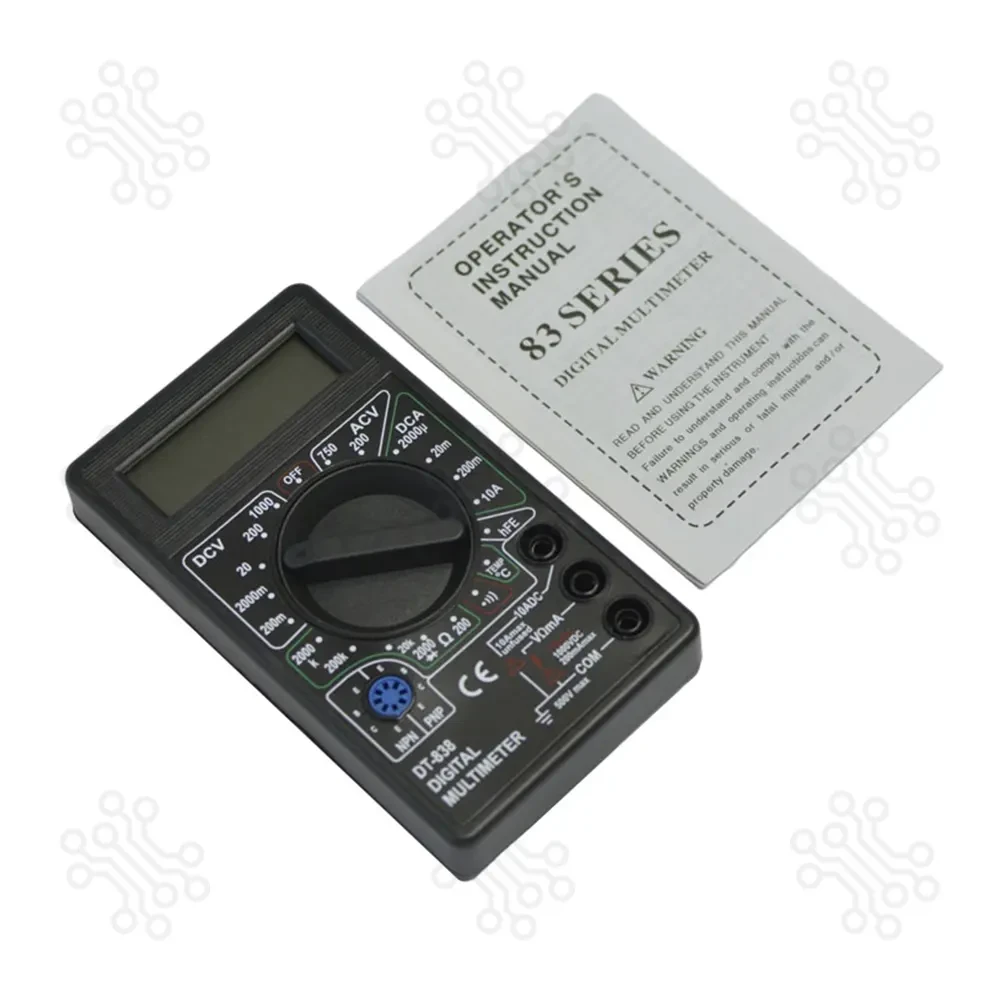

- 1 x User Manual
- 1 x Thermocouple Probe (for temperature measurement)
