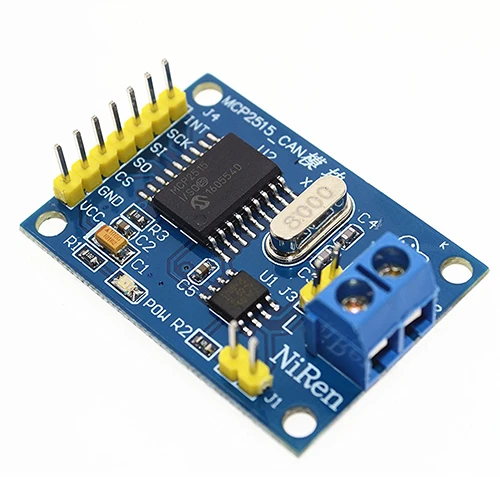

MCP2515 CAN Bus Module TJA1050 Receiver SPI Module

(0)

66 In Stock

৳360

Quantity

Total price: ৳360

Tax: incl.

Details description
Module Performance and Features: 1. Support CAN v2.0b technical specification, 1Mb/S communication speed 2. Long data field 0~8 bytes 3. Standard frame, extended frame and remote frame 4. 5V DC module supply, SPI interface protocol control 5. 120ohm terminal resistance With impedance adaptation, ensure the drive capacity, long distance data transmission prevents signal output. 6. Module size: 4.3 cm x 2.8 cm, distance between the holes of the positioning screw: 23 mm x 38 mm. 7. Working current: typical value of 5mA, standby current 1 microamp. 8. Working temperature: industrial grade -40°C to 85°C. Specifications: Working voltage: DC 5 V. Working current: 5mA (1 microamps standby current. Except power indicator) Size: 4.3cm x 2.8cm Screw hole spacing: 23mm x 38mm Package includes: 2 x MCP2515 Module

Details description

Module Performance and Features:
1. Support CAN v2.0b technical specification, 1Mb/S communication speed
2. Long data field 0~8 bytes
3. Standard frame, extended frame and remote frame
4. 5V DC module supply, SPI interface protocol control
5. 120ohm terminal resistance With impedance adaptation, ensure the drive capacity, long distance data transmission prevents signal output.
6. Module size: 4.3 cm x 2.8 cm, distance between the holes of the positioning screw: 23 mm x 38 mm.
7. Working current: typical value of 5mA, standby current 1 microamp.
8. Working temperature: industrial grade -40°C to 85°C.

Specifications:
Working voltage: DC 5 V.
Working current: 5mA (1 microamps standby current. Except power indicator)
Size: 4.3cm x 2.8cm
Screw hole spacing: 23mm x 38mm

Package includes:
2 x MCP2515 Module
