Logic Level Converter-Discontinued

(0)

66 In Stock

৳300
Quantity
Total price: ৳300
Tax: incl.
Details description

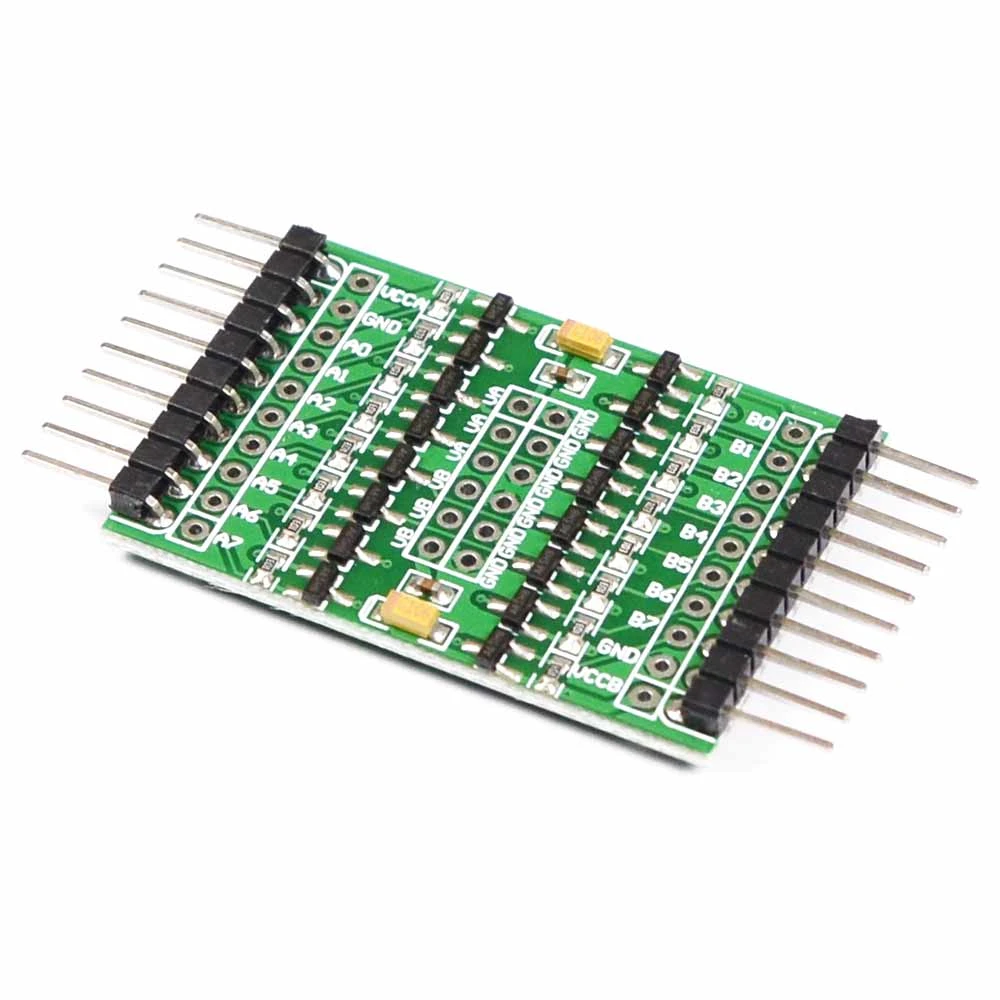

This Logic Level Converter provides 8 channels' bidirectional voltage translation between different logic level, translate between Ax and Bx automatically.

How to Use

In the case of translating between 3.3V and 5V system:

  • VCCA/VA connects to 3.3V power supply
  • VCCB/VB connects to 5V power supply
  • GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
  • When Ax has TTL 3.3V input, Bx will get TTL 5V output
  • When Bx has TTL 5V input, Ax will get TTL 3.3V output
  • NO direction control required
