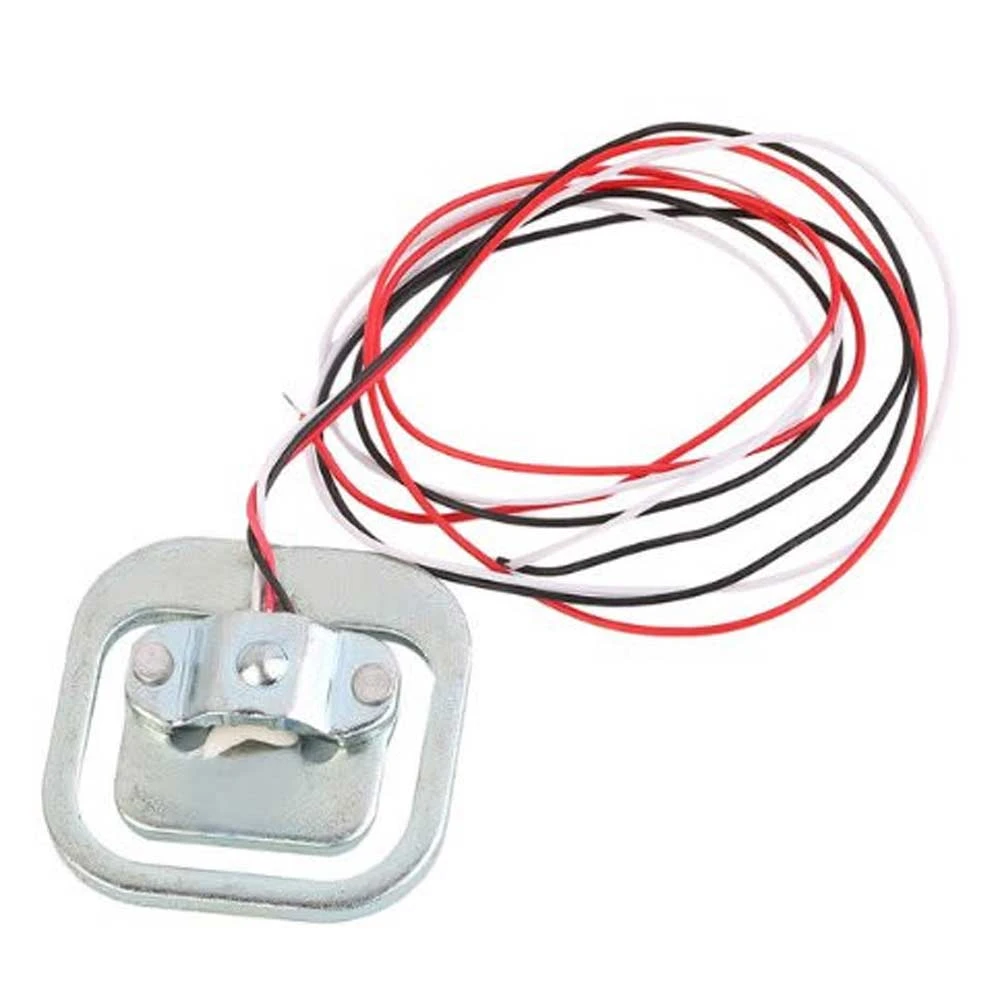

Load Sensor - 50kg

(0)

66 In Stock

৳400
Quantity
Total price: ৳400
Tax: incl.
Details description

This  is  a strain gauge based LoadCell constructed from Aluminum Alloy for high Accuracy. It is mainly used for measuring weight.

Specification of Load Sensor - 50kg

Rated Output

1.937 mV/V (mili Volt per Volt)

Non-linearity

0.011 %F.S

Excitation Voltage

9 VDC - Maximum 12 VDC

Hysteresis

0.017% FS

Repeatability

0.011% FS

Ultimate Load

150% of Rated Capacity

Creep (30 minutes)

0.019% FSO/30 Min

Zero Balance

±1.5% FS

Input Impedence

405 ± 10 ohms

Output Impedence

350 ± 5 ohms

Insulation resistance

Above 5000 Mega ohms

Temp. Compensation

-10oC to +40oC

Material

Alluminium alloy, Colourless anodized

Cable

4mm, 0.42 mts

Rated load

50Kg

Precision

0.02

0/5
