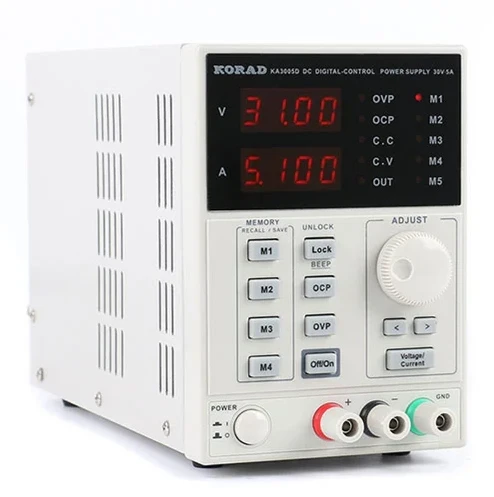

DC Power Supply - Korad KA3005D
The KA-Series of benchtop power supplies from Korad Technology is packed with features at a cost that can't be beat! This heavy duty signal-channel linear power supply features a bright and easy to read 4-digit LED screen to display the voltage and current values. As well as memory locations (M1-M4) to store four of your favorite settings.
The constant voltage and current settings are delivered with low ripple and noise, high reliability and high accuracy. Perfect for use in labs, colleges, and production environments where continuously adjustable. Forget lower cost 3-digit power supplies without programmable memory storage and start working smarter with Korad.
Key Features
- 30V/5A full digital power control
- 10mV/1mA high accuracy and resolution
- Low noise and ripple
- Over-voltage protection and over-current protection
- Keyguard lock panel buttons
- Input voltage: 220V +/-10%
- Frequency range: 50-60Hz
- Operating temperature: 32-104 °F (0-40 oC)
- Operating humidity: < 80%RH
- Dual 4 digit LED displays
- Weight: 9.52 Lbs / 4.32 Kg
Getting Raw Data
| Model | KA3005D |
| Voltage Range | 0-30V |
| Current Range | 0-5A |
| Load Regulation | Voltage: ≤0.01%+2mVm, Current: ≤0.1%+10mA |
| Line Regulation | Voltage: ≤0.01%+3mVm, Current: ≤0.1%+3mA |
| Setup Resolution | Voltage: 10mVm, Current: 1mA |
| Setup Accuracy (25°C ± 5°C) | Voltage: ≤0.5%+20mVm, Current: ≤0.5%+10mA |
| Ripple (20-20M) | Voltage: ≤2mVrmsm, Current: ≤2mVrms |
| Temperature Coefficient | Voltage: ≤150ppmm, Current: ≤150ppm |
| Read Back Resolution | Voltage: 10mV, Current: 1mA |
| Read Back Temp. Coefficien | Voltage: ≤150ppm, Current: ≤150ppm |
| Reaction Time | Voltage Rise: ≤100mS Voltage Drop: ≤100mS |
| Weight | 9.52 Lbs / 4.32 Kg |
| Dimensions | 100mm (W) x 156mm (H) x 260mm (D) |
| | |
Documents
Packaging Details
- 1 x KA3005D Power Supply
- 1 x User Manual
- 1 x Set of 5 Amp Test Lead
- 1 x Power Cord
