The NICE-POWER SPS305-2KD is a high-performance lab power supply featuring dual independent outputs, capable of delivering 30V and 5A from each channel. It incorporates advanced functions such as one-button series and parallel output configurations, as well as precise voltage, current, and power control via a digital encoder knob. With its compact design, lightweight build, and high power density, this unit is perfect for a wide range of applications requiring stable and reliable power delivery.
Key Features

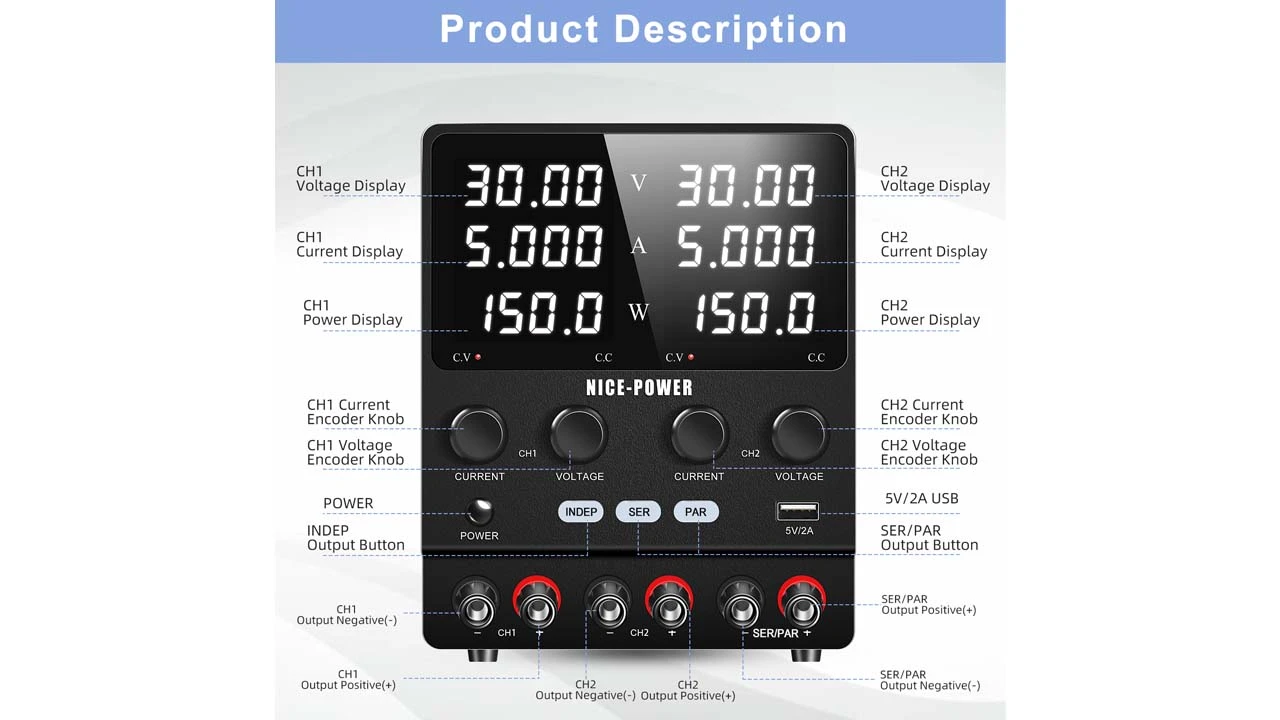

- Dual independent outputs enable simultaneous use of two channels, providing greater flexibility.

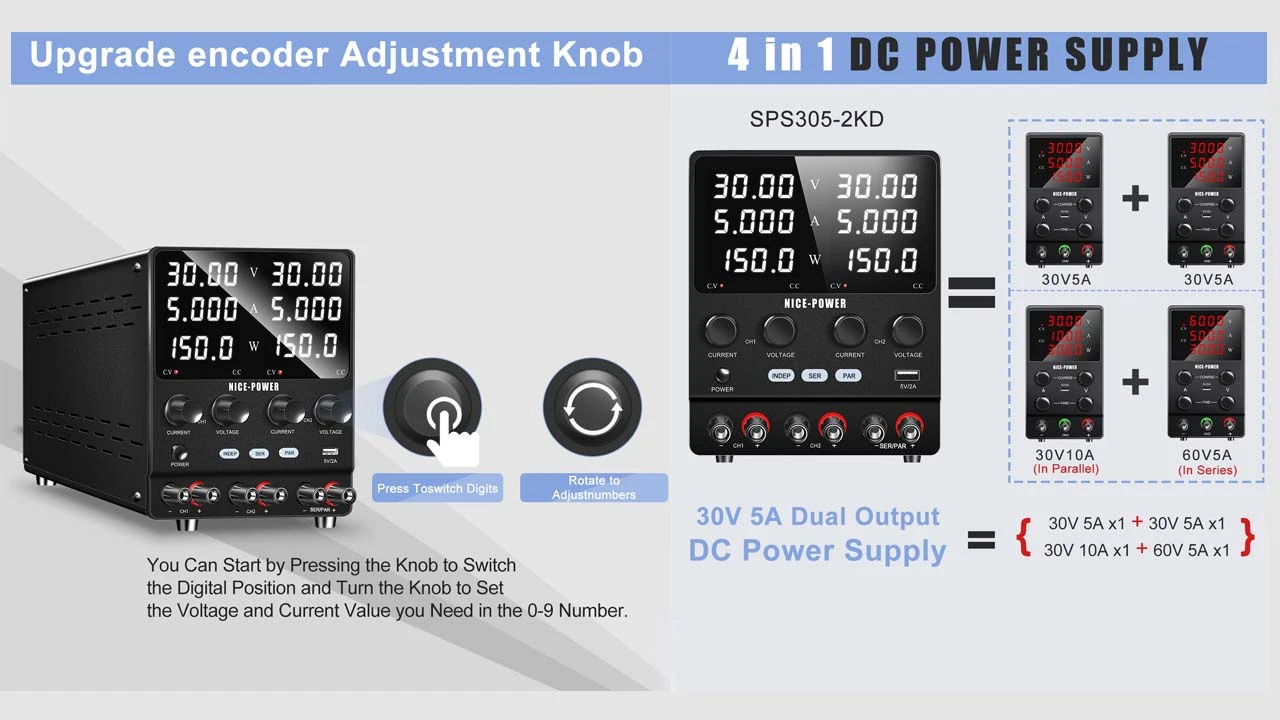

- One-button series and parallel switching allows effortless configuration for various applications.
- A precision encoder knob ensures smooth and accurate voltage and current adjustments.
- Auto CV/CC mode seamlessly switches between constant voltage and constant current as needed.
- A smart cooling system with a temperature-controlled fan ensures efficient heat dissipation and quiet operation.
- The compact and lightweight design makes it perfect for labs and fieldwork where space is limited.
- High power density maximizes performance while maintaining a small footprint.
Technical Specifications
Feature | Specification |
|---|
Condition | 100% Brand New |
Model | SPS305-2KD |
Color | Black |
Output Voltage | 0-30V |
Output Current | 0-5A |
Voltage Resolution | 0.01V |
Current Resolution | 0.001A |
Ripple Voltage | Vpp ≤ 1% |
Power Impact | CV ≤ 1% + 10mV |
Load Effect | CV ≤ 1% + 10mV |
Digital Display | 4 LED Digital Display |
Ripple Noise | ≤ 1mV |
Voltage Display Accuracy | ±1% + 1 digit |
Current Display Accuracy | ±1% + 2 digits |
Working Environment | -10°C to 45°C / 14°F to 113°F |
Storage Environment | -20°C to 60°C / 4°F to 140°F |
Weight | 2180g |

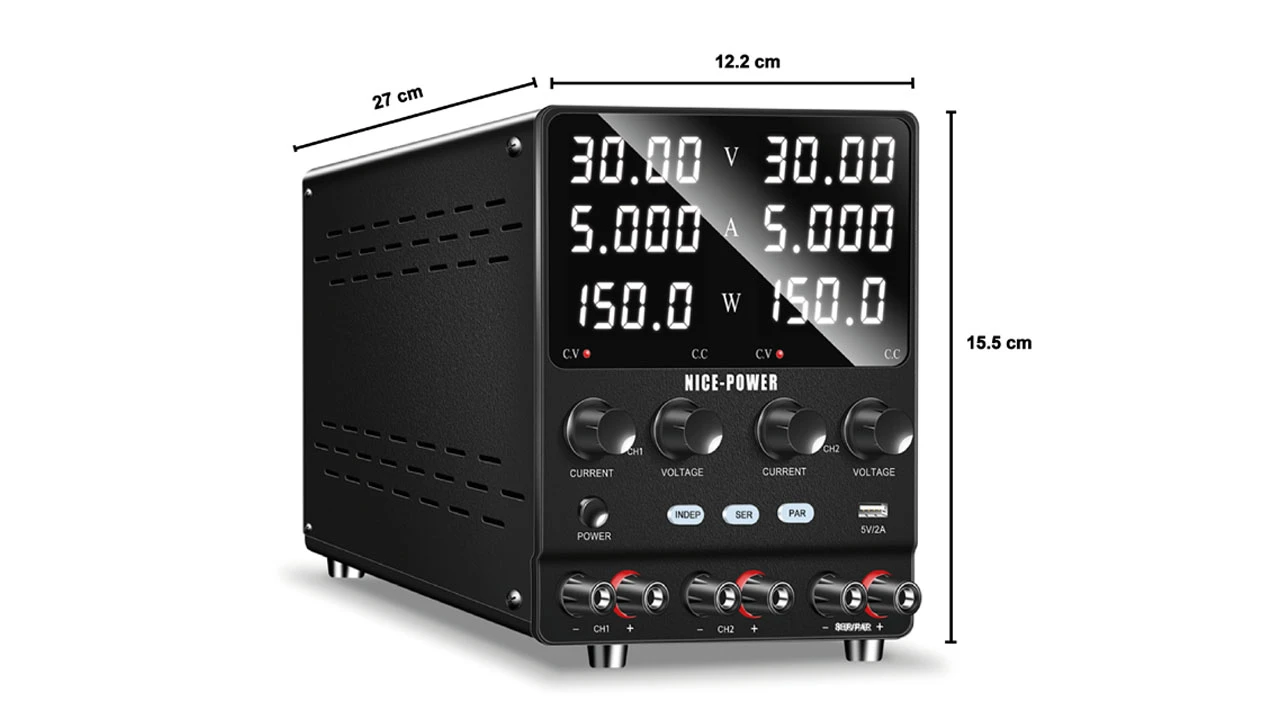

Size | Width:12.2cm
Length:27cm
Height:15.5cm |
Tested Voltage Measurements
Channel | Preset Voltage | Actual Voltage |
|---|
CH1 | 3.3V | 3.293V |
CH1 | 5V | 4.998V |
CH1 | 9V | 9.00V |
CH1 | 12V | 12.00V |
CH1 | 24V | 24.02V |
CH1 | 31V (Highest) | 31.03V |
USB Port | 5V | 5.003V |
Tested Current Measurements
Channel | Current (A) | Actual Voltage | Power (W) |
|---|
CH1 | 1A | 12.00V | - |
CH1 | 2A | 11.98V | - |
CH1 | 3A | 11.97V | - |
CH1 | 4A | 11.96V | - |
CH1 | 5A | 11.95V | 60W |
CH2 | 1A | 12.00V | - |
CH2 | 2A | 11.98V | - |
CH2 | 3A | 11.97V | - |
CH2 | 4A | 11.96V | - |
CH2 | 5A | 11.95V | 60W |
SER/PAR CH | 5A | 11.93V | 60W |
SER/PAR CH | 10A | 11.65V | 120W |
USB Port | 1A | 4.84V | - |
USB Port | 2A | 4.55V | - |
Safety and Protection
- Overcurrent Protection: Safeguards against overload conditions to protect both the power supply and connected devices.
- Temperature-Controlled Fan: Prevents overheating, extending the power supply's operational life.
- Precise Digital Monitoring: Ensures accurate display of voltage, current, and ripple noise for accurate measurements.
Applications
- Production line testing
- Mobile phone, computer, and electrical appliance repair
- Product aging and electroplating
- Charging batteries
- Laboratories, research, and teaching
- Any equipment requiring a DC regulated power supply
Packaging Details
- 1x DC Power Supply (SPS305-2KD)
- 1x AC Power Cord UK Type-C Type [Length: 42 Inch]
- 2x Pair of Testing Cord Banana Plug To Alligator Clip [Length: 41 Inch]
- 1x USB to Alligator Clip [Length: 23 Inch]
- 1x Panel Instruction card
- 2x User Manual (1x Chinese, 1x English)
- 1x Warranty Card (Manufacturer)
