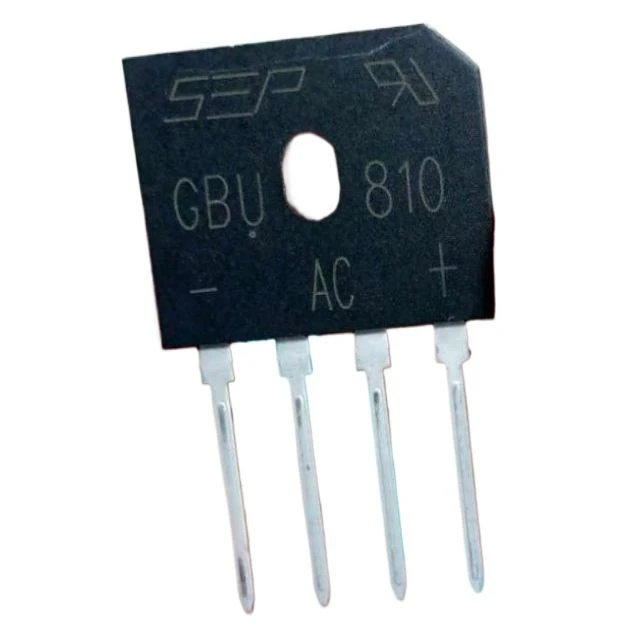

GBU810 8A 1000V Bridge Rectifier

(0)

67 In Stock

৳35
Quantity
Total price: ৳35
Tax: incl.
Details description

GBU810 AC Bridge Rectifier Diode 1000V 8A Bridge Rectifiers IC Diode 4 Pin Leads Chip For Generator Motor



Specifications:

  • Case: GBU

  • Case Material: Molded Plastic. UL Flammability

  • Classification Rating 94V-0

  • Moisture Sensitivity: Level 1 per J-STD-020C

  • Terminals: Finish Tin. Solderable per MIL-STD-202,

  • Method 208

  • Polarity: Marked on Body

  • Mounting: Through Hole for #6 Screw

  • Mounting Torque: 5.0 Inch-pounds Maximum

  • Ordering Information: See Last Page

  • Marking: Date Code and Type Number

  • Weight: 6.6 grams (approximate)

Features :

  • Glass Passivated Die Construction

  • High Case Dielectric Strength of 1500VRMS

  • Low Reverse Leakage Current

  • Surge Overload Rating to 200A Peak

  • Ideal for Printed Circuit Board Applications

  • UL Listed Under Recognized Component

  • Index, File Number E94661

  • Lead Free Finish, RoHS Compliant (Note 4)
