Espressif ESP32 C6 DevKitC-1 Development Board

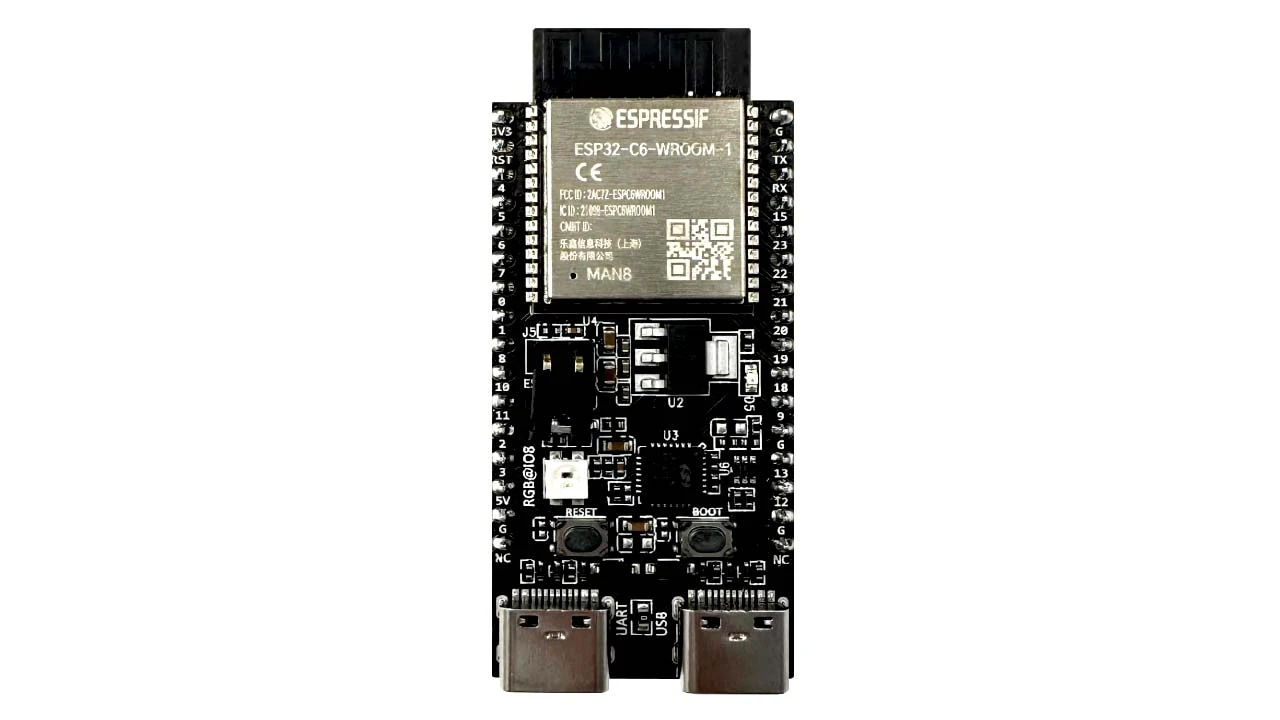

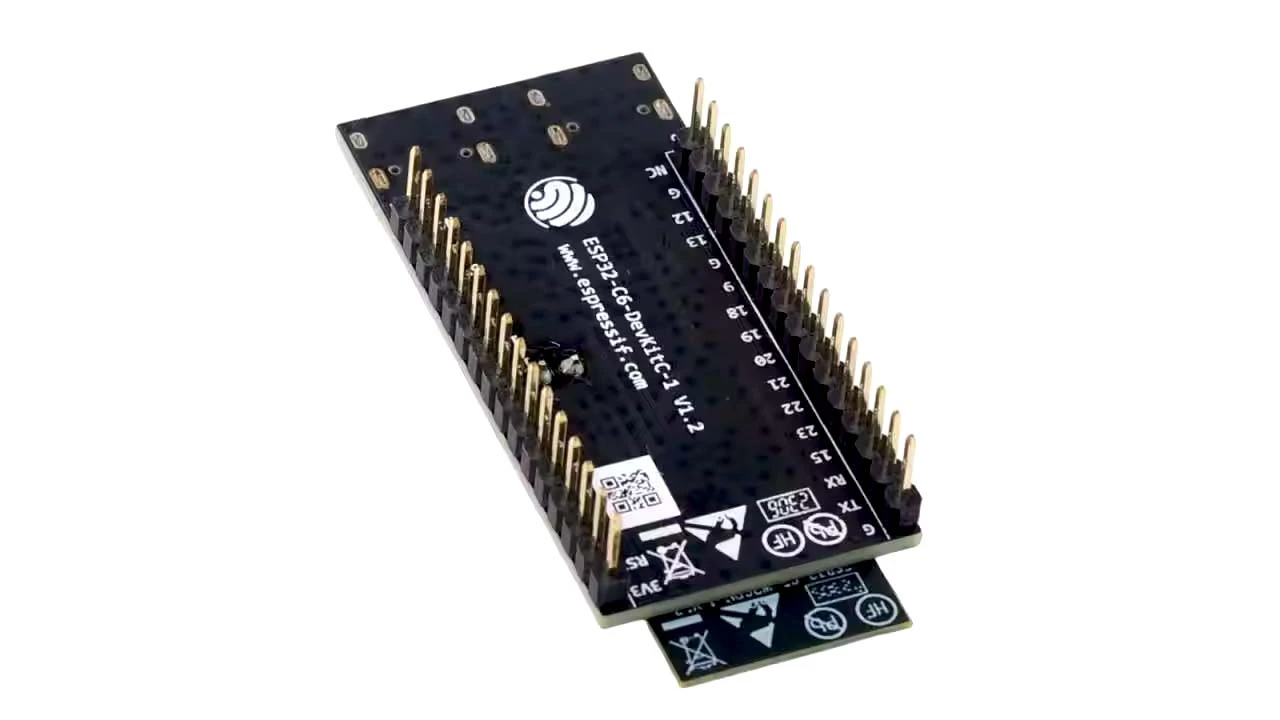

ESP32-C6-DevKitC-1 v1.2 is a low-cost, entry-level development board from Espressif, built around the powerful ESP32-C6-WROOM-1 or WROOM-1U module. With built-in support for Wi-Fi 6 (2.4 GHz), Bluetooth 5 (LE), Zigbee 3.0, and Thread 1.3, this versatile dev board is ideal for prototyping connected devices and IoT applications. It features robust wireless connectivity, ample flash memory, and a breadboard-friendly design for rapid development.
Key Features
- ESP32-C6-WROOM-1 Module with 8 MB SPI flash
- Wi-Fi 6 support (802.11ax in 2.4 GHz band)
- Bluetooth 5 Low Energy (LE)
- IEEE 802.15.4 for Zigbee & Thread support
- USB Type-C port for power, programming, and debugging
- Addressable RGB LED (WS2812 driven via GPIO8)
- On-board USB-to-UART Bridge
- 3.3 V & 5 V LDO Regulator for flexible power supply
- Breadboard compatible with all GPIOs broken out
- JTAG debugging and current measurement interface (J5)
- Multi-point ADC calibration
Technical Specifications:
Parameter | Specification |
|---|
Module | ESP32-C6-WROOM-1 / WROOM-1U |
Flash Memory | 8 MB SPI flash |
Wireless Connectivity | Wi-Fi 6, BLE 5, Zigbee 3.0, Thread 1.3 |
USB Support | USB 2.0 Full Speed (12 Mbps) |
Antenna Type | On-board PCB (WROOM-1) / External (WROOM-1U) |
Power Supply | USB Type-C, 5V Pin, or 3.3V Pin |
GPIOs | All usable I/Os broken out; includes strapping pin access |
LED | 1x RGB LED (WS2812) |
Buttons | Boot & Reset |
Debug Interface | USB-JTAG via ESP32-C6 USB |

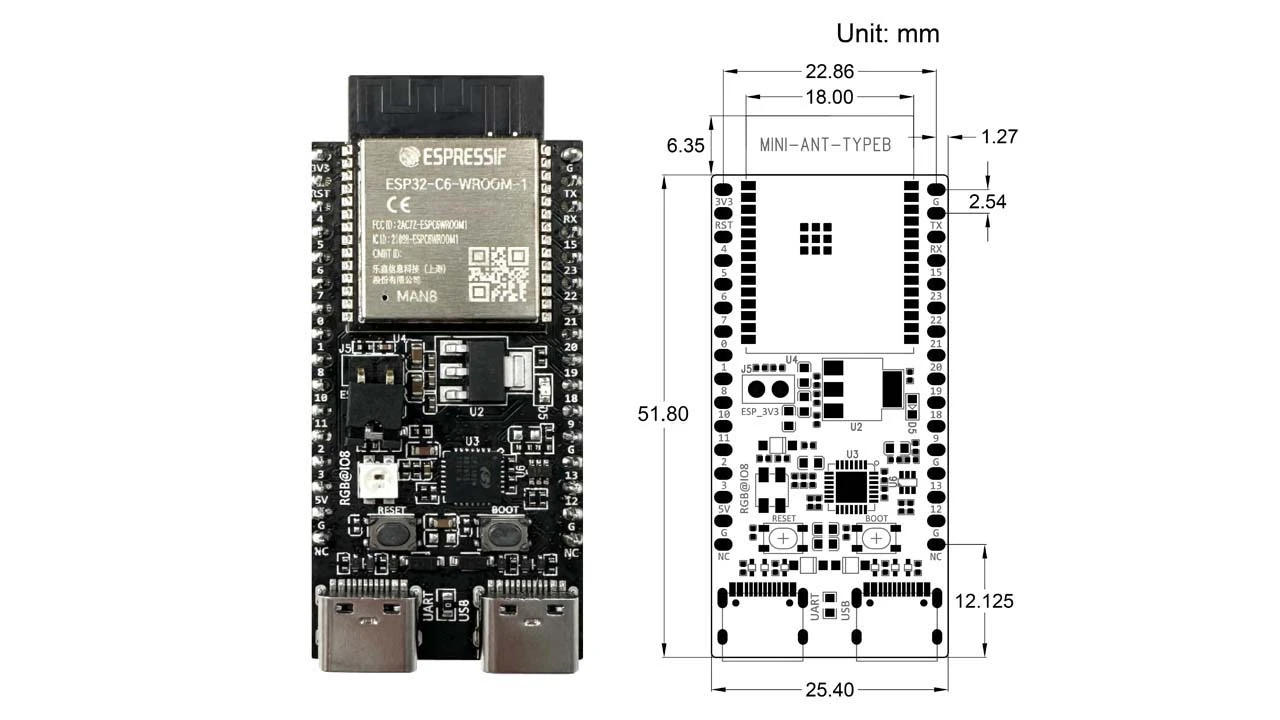

Dimensions | 51.80mm X 25.40mm |
Current Measurement | Via J5 jumper/header |
Applications
- IoT Prototyping & Wireless Sensor Networks
- Smart Home and Building Automation
- BLE Beacons and Gateways
- Zigbee/Thread-enabled Devices
- Wearables and Health Monitoring
- USB-Enabled Embedded Applications
- Educational and Industrial Prototyping
