| Details description |
|---|
|

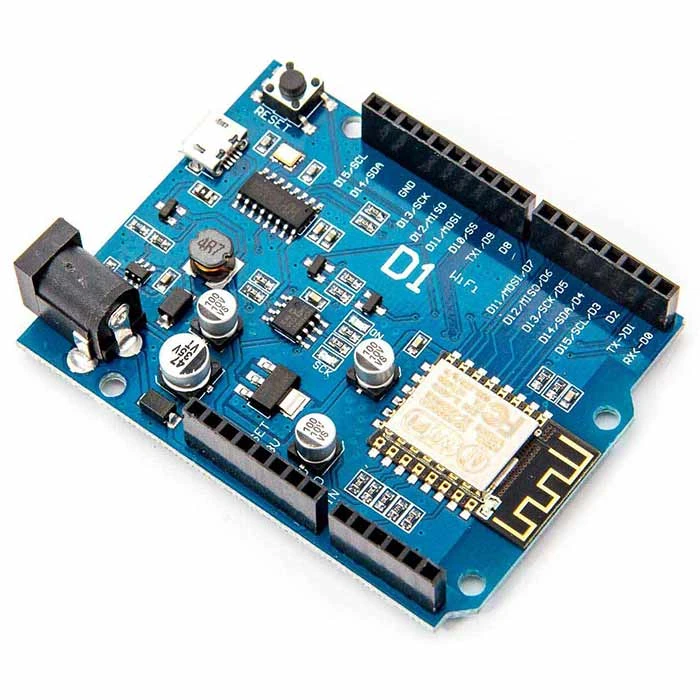

WeMos D1 R1 is an Arduino like development board based on the polpular ESP8266 IOT chip. It is the same Wi-Fi board like other ESP8266 boards with the convenience of Arduino form factor and an on-board usb-serial converter (CH340) . That means you can attach Arduino shields on top of it. Moreover, it can be programmed using the Arduino IDE as well.
If you are developing an Arduino based IOT project, this board is the best choice for you.
WeMos D1 official website link: Click here Getting Started Video: Click here Tutorial to control lights with your phone: Click here
Specification of ESP8266 Development Board WeMos D1 R1Microcontroller: WeMos ESP8266 Operating Voltage: 3.3V (pins are not 5V compatible) Digital I/O pins: 11, all pins have interrupt/pwm/I2C/one-wire supporte (except for D0) Analog Input Pin: 1 (max 3.2V) Clock Speed: 80MHz/160MHz Flash: 4M Bytes USB-Serial Converter Chip: CH-340 Programming Port: Micro USB Power Socket: Barrel type (8V - 24V DC Input) Dimension: 68mm X 53 mm (l X b) Supports Arduino and NodeMCU |
