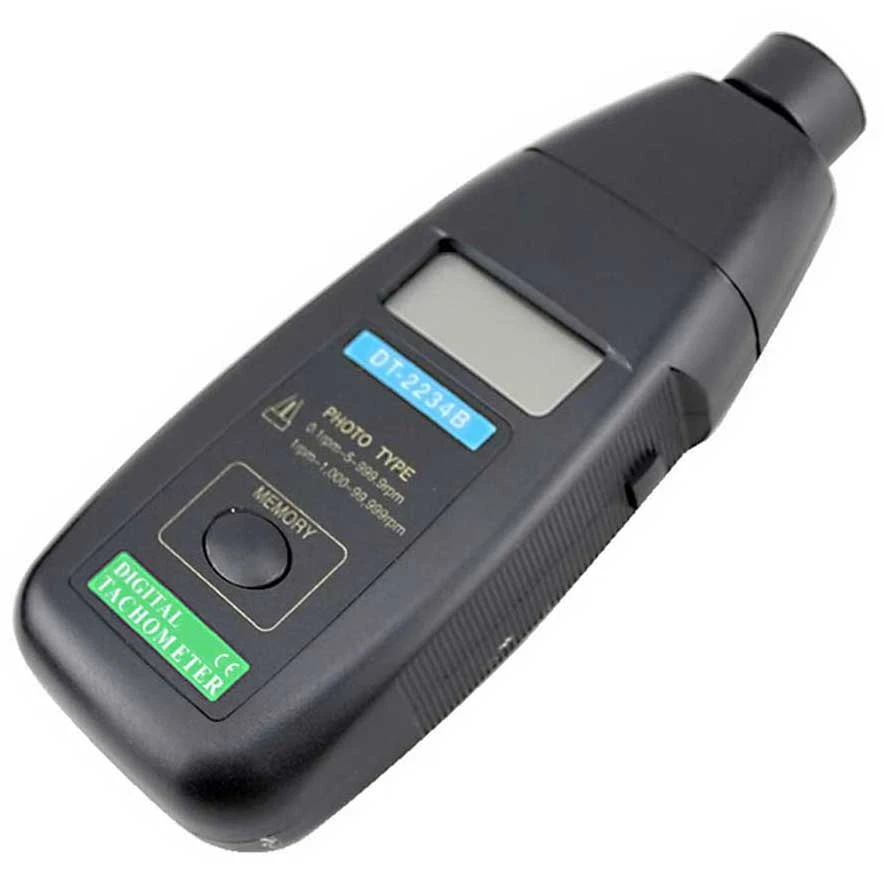

Luton DT 2234 B Digital Tachometer durable, long-lasting components, including a strong, lightweight ABS plastic housing, assures almost maintenance-free performance for many years. Detecting distance of Luton DT 2234 B Digital Tachometer 50 - 2,000 mm typically. Spec. of detecting distance is that under the size of reflecting tape is 10 mm square & the measuring RPM value is 1,800 PPM. The max. detecting distance may change under different environments, different reflecting tape or measuring RPM beyond 1800 PRM.

Key Features: Luton DT 2234 B Digital Tachometer:-

• Laser light detecting source, long measuring range up to 2 meters, it is useful in the RPM measurement application where the machine would be a risk to the operator or close access is difficult or not possible.
• Wide measuring range from 10 to 100,000 RPM, 0.1 RPM resolution for the measured value < 1000 RPM.
• Microprocessor-based circuit, crystal time base, high precision with 0.05% accuracy.
• The high visible LCD display gives RPM reading exactly with no guessing or errors & saves battery energy.
• Memory with recall function, the last value, max., value, min. value will be stored into the memory automatically.
• The use of durable, long-lasting components, including a strong, lightweight ABS plastic housing, assures almost maintenance-free performance for many years.

Specification:-

Test range: 2.5 to 99,999 RPM

Resolution: 0.1 RPM(2.5 to 999.9 RPM)

Accuracy: ±(0 05%+1 digit)

Sampling time: 0.8 sec.(Over 60 RPM)

Test range selection: Automatic

Memory: Max value, min value, last value

Detecting distance:  50 to 250mm/2 to 10 inch(LED)

50 to 500mm/2 to 20 inch(Laser)

Time base: Quartz crystal

Circuit: Exclusive one-chip of microcomputer LSI circuit.

Battery: 4x 1.5V AAA(UM-3)

Power Consumption:  Approx x45mA(Operation) (LED)

 Approxx35mA(Operaion)(Laser)

Operation Temp: 0 to 50 C (32 to 122 F)

Size: 190x72x37mm

Weight: 220g(including battery)

Package Include:-

• 1 Lutron Digital Photo Tachometer DT-2234B
• 1 x Carrying case
• 1 reflecting tape marks (600 mm)
• 1 operation manual
