DC to DC Boost Converter

(0)

68 In Stock

৳750

Quantity

Total price: ৳750

Tax: incl.

Details description

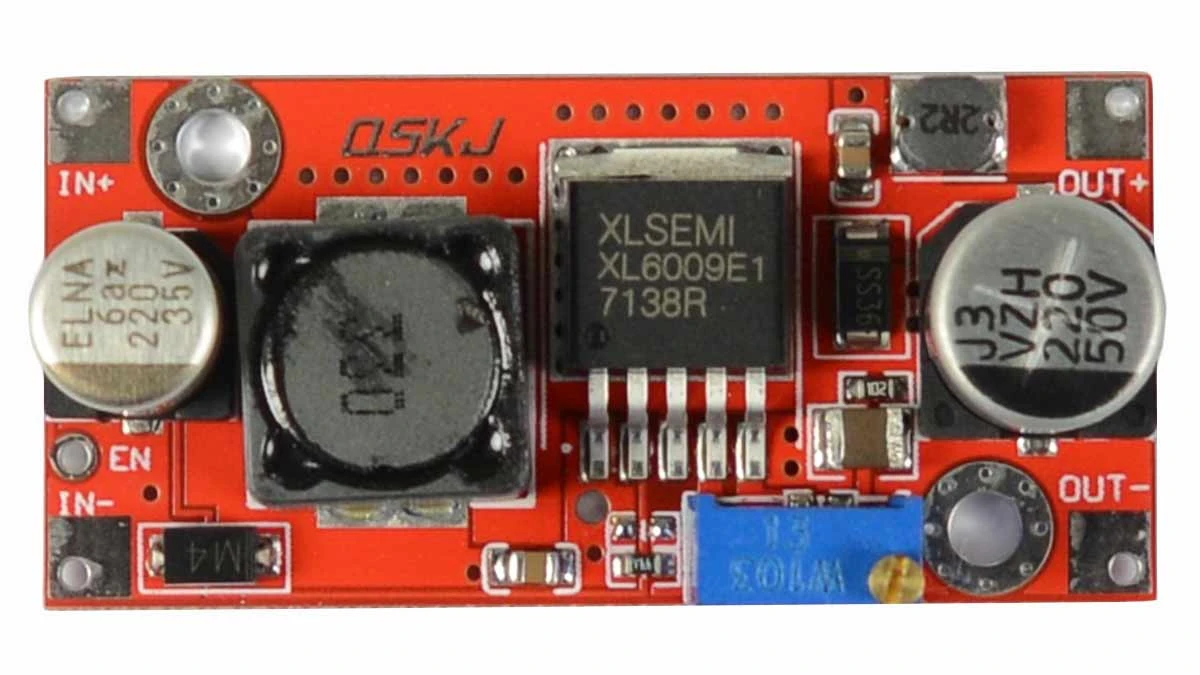

This is multipurpose boost converter, a breakout board. The module features 5~32V input voltage and its output voltage reaches up to 50V. It allows users to use low-voltage power source to power high-voltage device. The tiny form factor and its simplicty makes it for a very nice addition for all projects requiring an extra power module. Note: This board does NOT have reverse polarity protection, so please be sure to recognize the polarity of your connections! The input voltage must be LESS than output voltage, otherwise, it may damage the board. DOCUMENTS XL6009 datasheet Click here to know more Specification of DC to DC Boost Converter Input voltage:5-32V Output voltage:50V max Max input current:3A Max Power:15W Efficiency: 90% Size:32x34x20 mm (1.25x1.3x0.8'')

Details description

This is multipurpose boost converter, a breakout board.

The module features 5~32V input voltage and its output voltage reaches up to 50V. It allows users to use low-voltage power source to power high-voltage device.

The tiny form factor and its simplicty makes it for a very nice addition for all projects requiring an extra power module.

Note:

This board does NOT have reverse polarity protection, so please be sure to recognize the polarity of your connections!
The input voltage must be LESS than output voltage, otherwise, it may damage the board.

DOCUMENTS

XL6009 datasheet

Click here to know more

Specification of DC to DC Boost Converter

Input voltage:5-32V
Output voltage:50V max
Max input current:3A
Max Power:15W
Efficiency: 90%
Size:32x34x20 mm (1.25x1.3x0.8'')
