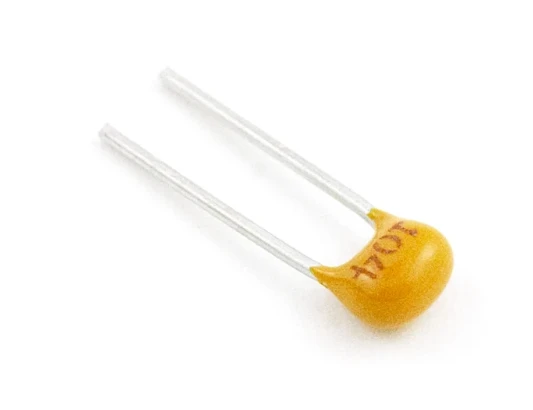

Description of Capacitor Ceramic 0.1uF Brand SparkfunThis is a high-quality 0.1µF ceramic disc capacitor, marked "104", and commonly used in electronics for power supply decoupling, signal bypassing, and filtering noise in both analog and digital circuits. Its through-hole design, standard 0.1” (2.54mm) lead spacing, and 50V voltage rating make it ideal for breadboards, perfboards, and general-purpose prototyping.
|
| Parameter | Specification |
|---|---|
Capacitance | 0.1 µF (100 nF) |
Tolerance | ±10% (typical) |
Rated Voltage | 50V DC |
Dielectric | Ceramic |
Operating Temp. Range | -40°C to +85°C |
Mounting Type | Through-Hole (THT) |
Lead Spacing | 2.54 mm (0.1 inch) |
Body Type | Disc (Yellow Resin) |
Marking Explanation | "104" = 10 × 10⁴ pF = 100,000 pF = 0.1 µF |
Applications
- Decoupling ICs from power supply noise
- Filtering high-frequency signals
- Power line bypassing
- Breadboard prototyping and testing
- Analog and digital circuit stabilization
Package Contents
- 1 × Capacitor Ceramic 0.1uF
