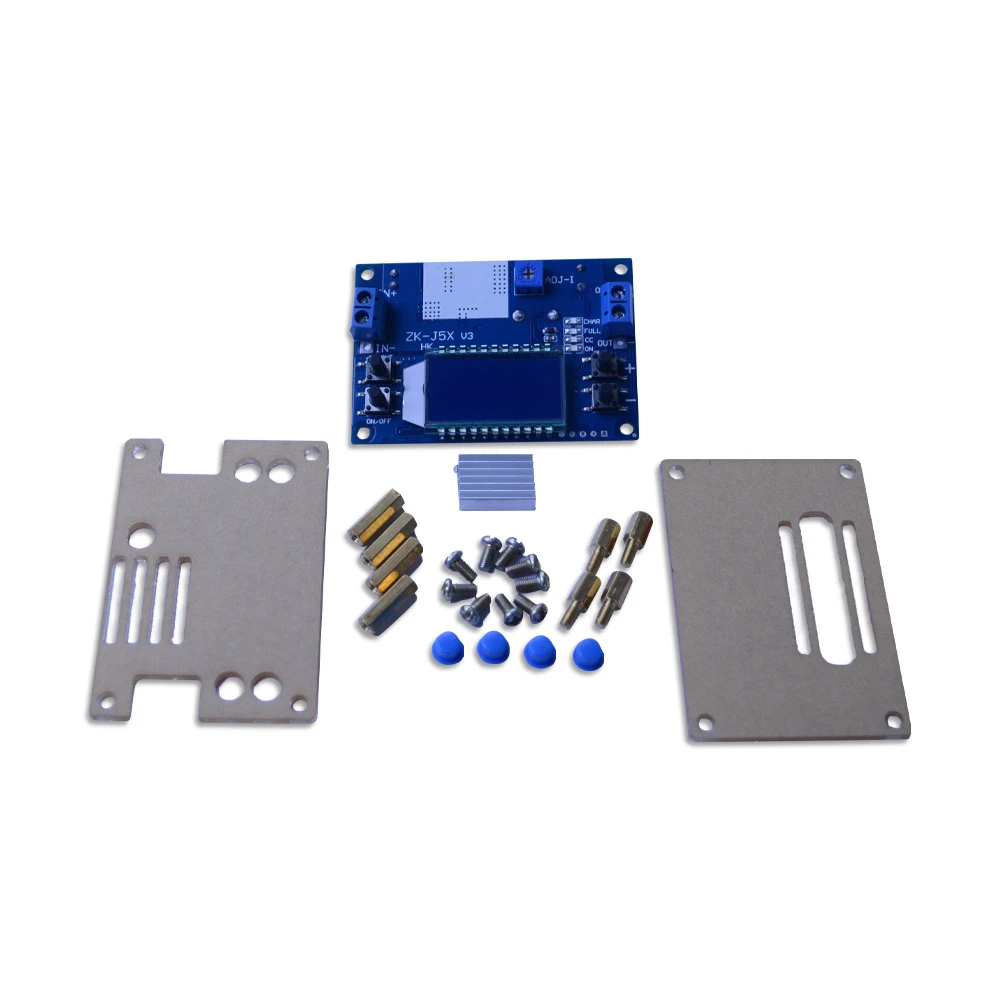

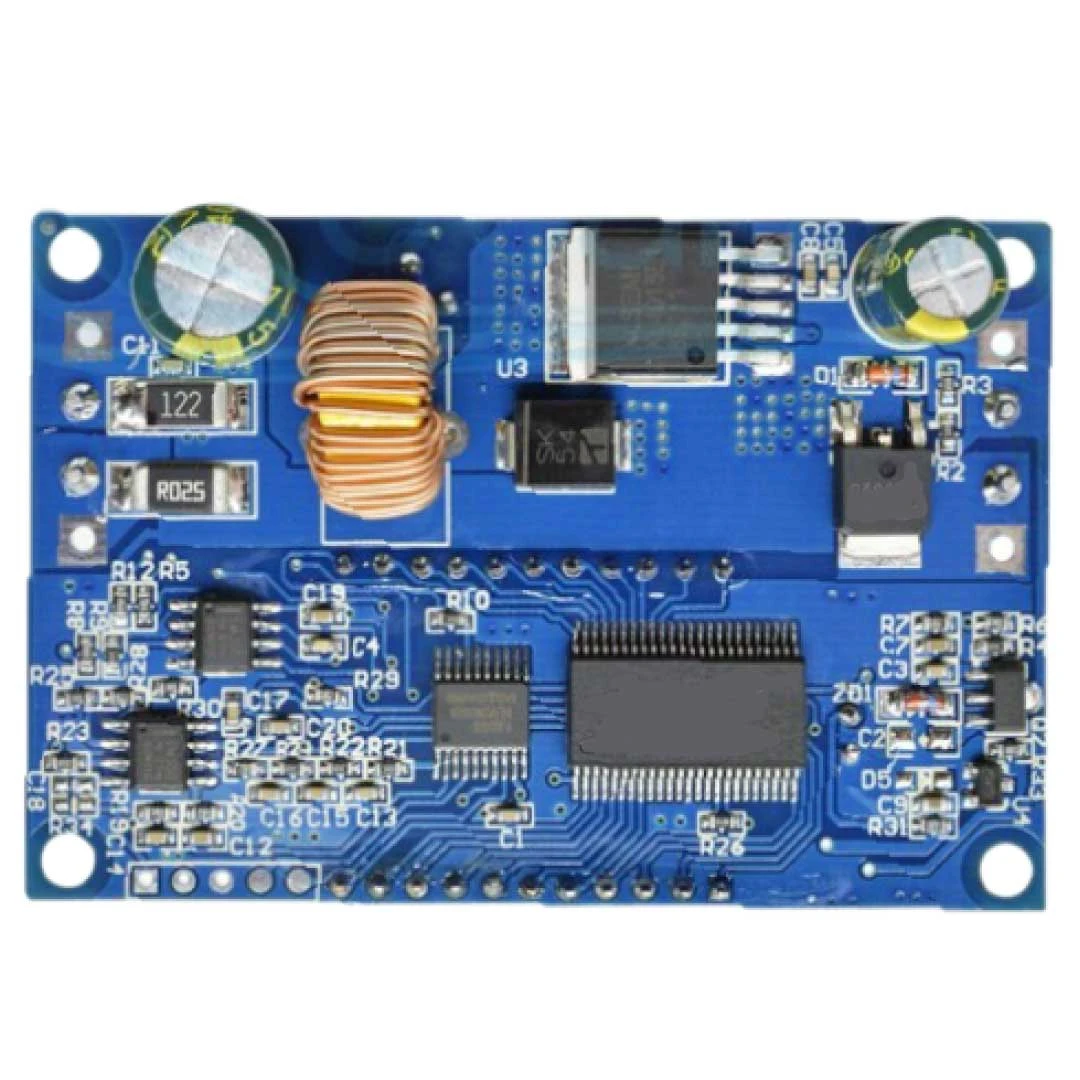

Features: - CC CV buck converter. You can control output voltage and Maximum Output Current - Can provide up to 32V voltage and 5A current at output - Bulit-in LCD panel shows Input & Output voltage, output current and power consumption - Output Enable/ disable button - Plastic Shell to protect LCD and circuit components from damage - Input reverse voltage protection, output short circuit protection
Usage Instructions: - IN/OUT Button: Short press to toggle between input or output voltage & current display. Long press to toggle between current or power display. - ON/OFF Button: Short press to enable/disable output. Long press to toggle output state at powerup. - CV and CC Pot: Rotate the CV and CC pot to change output voltage and max output current.
Caution: Never put AC voltage to the Input pins. Only provide DC voltage. Specification of Buck Converter CC/CV 32V 5AInput voltage: 5.3-32V Output voltage: 1.2-32V (Must be at least 1V than Input Voltage) Output Current: 5A max Output Power: 160W max Voltage display (LCD): resolution 0.05V, range 0-32V Current display (LCD): resolution 0.01A, range 0-5A Conversion efficiency: about 96% Input reverse Voltage protection: Yes Output Short Circuit Protection: yes Shell Material: Plastic (Acrylic) Dimension: 82mm X 52mm X 32mm (l X b X h) Weight: 80g (including plastic parts, screws and heat sink) |
