4N35 Optocoupler

(0)

67 In Stock

৳40
Quantity
Total price: ৳40
Tax: incl.
Details description

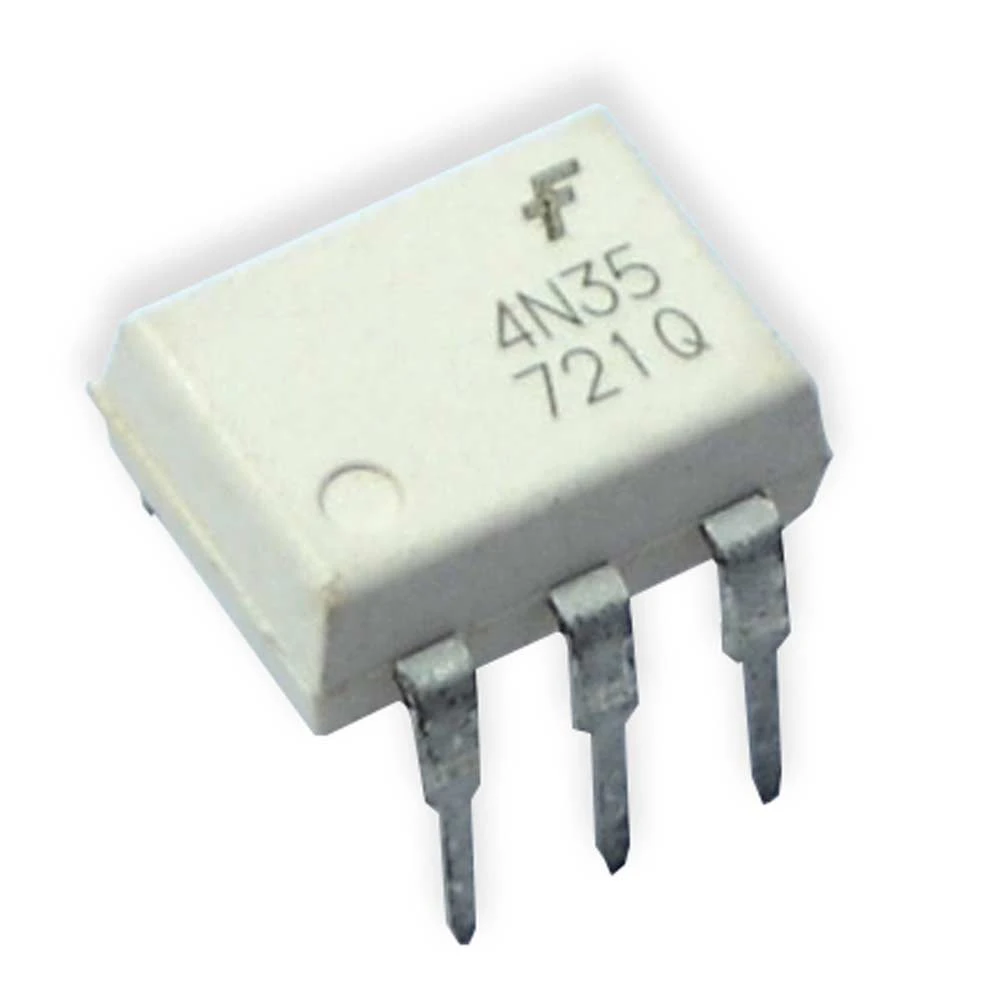

The 4N35 consists of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector.

APPLICATIONS

  • Power supply regulators
  • Digital logic inputs
  • Microprocessor inputs

Specification of 4N35 Optocoupler

INPUT LED
Reverse Voltage VR :6 Volts
Forward Current — Continuous :IF 60 mA

OUTPUT TRANSISTOR
Collector–Emitter Voltage VCEO: 30 Volts
Emitter–Base Voltage VEBO: 7 Volts
Collector–Base Voltage VCBO :70 Volts
Collector Current — Continuous IC: 150 mA

Documentation of 4N35 Optocoupler
